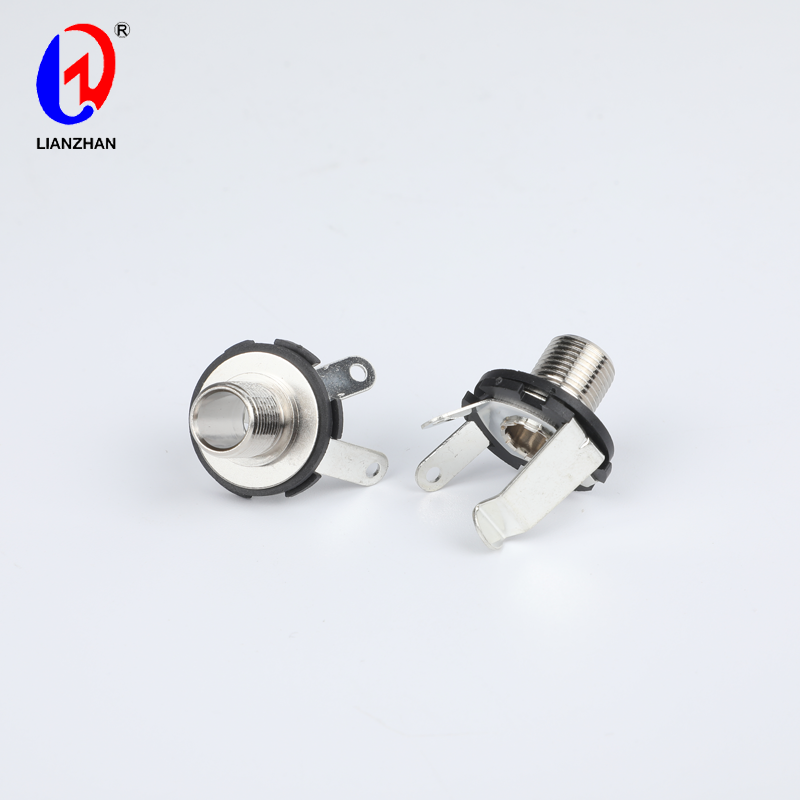

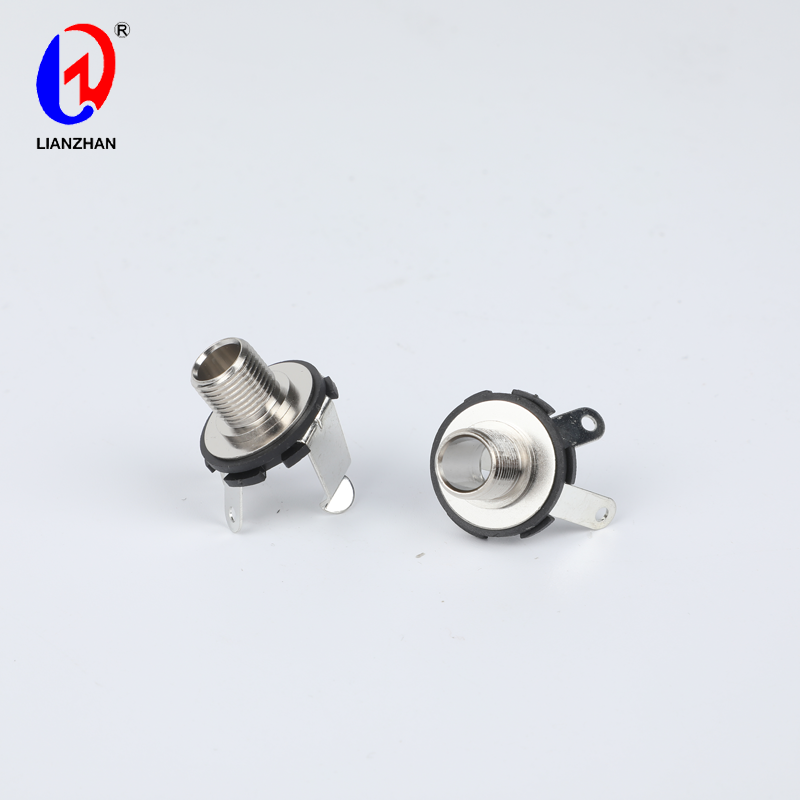

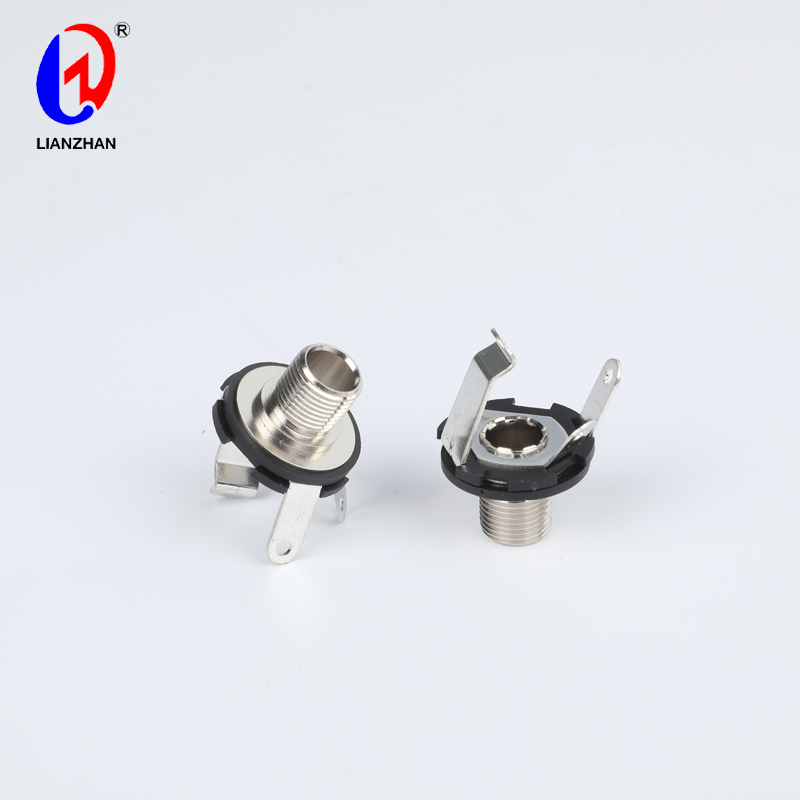

6.35mm Microphone Mono TS Socket Female Panel Mount Phone Jack Connector

6.35mm Microphone Mono TS Socket Female Panel Mount Phone Jack Connector

Short Description:

6.35mm (1/4inch) Female Mono TS Socket Panel Mount Jacks. Well made jacks, easy to solder and appear sturdy enough for heavy usage. Commonly used for the termination of guitar and signal cables. flexible protective cable boot. Suitable for demanding live sound and studio recording applications. Professional Jack Plug. 6.35mm panel mount solder.


Whatsapp

Product Detail

Product Tags

Product Details

● Product Name: 1/4 Inch Female Panel Mount Audio Mono Jack Connector
● Thick Fiberglass Insulators
● Washer and Nut Included
● Full Metal Construction
● Tip Sleeve Mono Design
● Full GLS Audio Satisfaction Guarantee

Specification

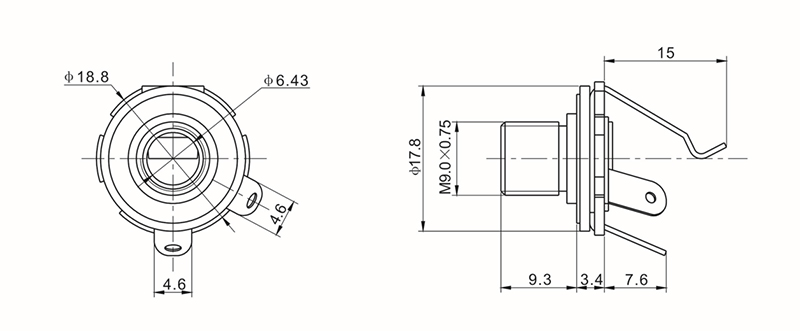

6.35mm-Microphone-Mono-TS-Socket-Female-Panel-Mount-Phone-Jack-Connector

Product Name

1/4 Inch Female Panel Mount Audio Mono Jack Connector
Model

CK6.35-662
Pin

3 PIN
Contact Resistance

≤0.03 MΩ
Insulation Resistance

≥100 MΩ
Withstand Voltage

 500V, AC/min
Terminal Strength

≥30 N
Rated Load

30V DC 1.0A
Temperature

-30 ~ +70 ℃
Life

5000 Time
