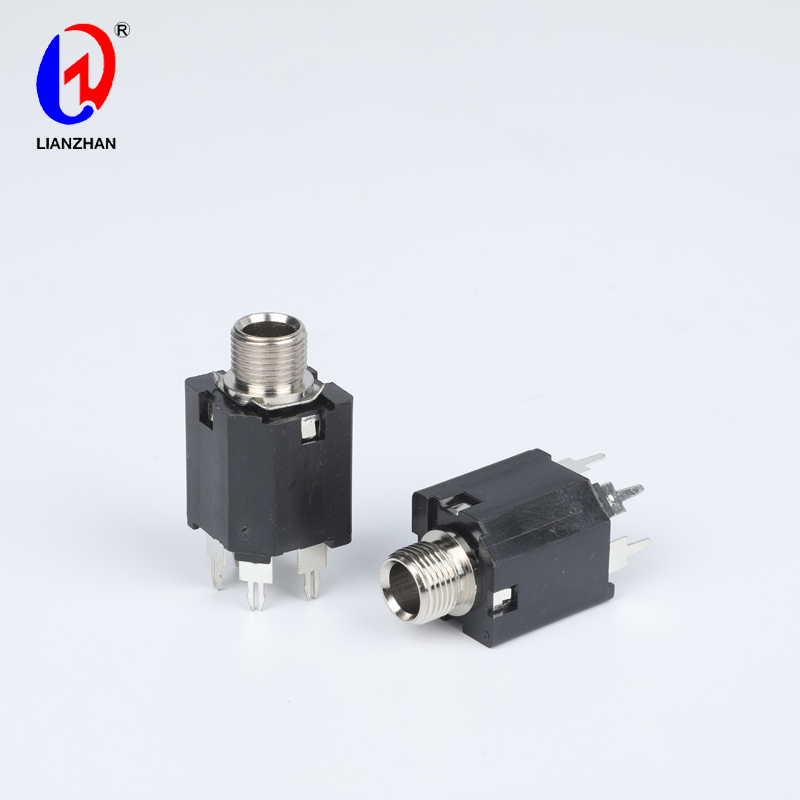

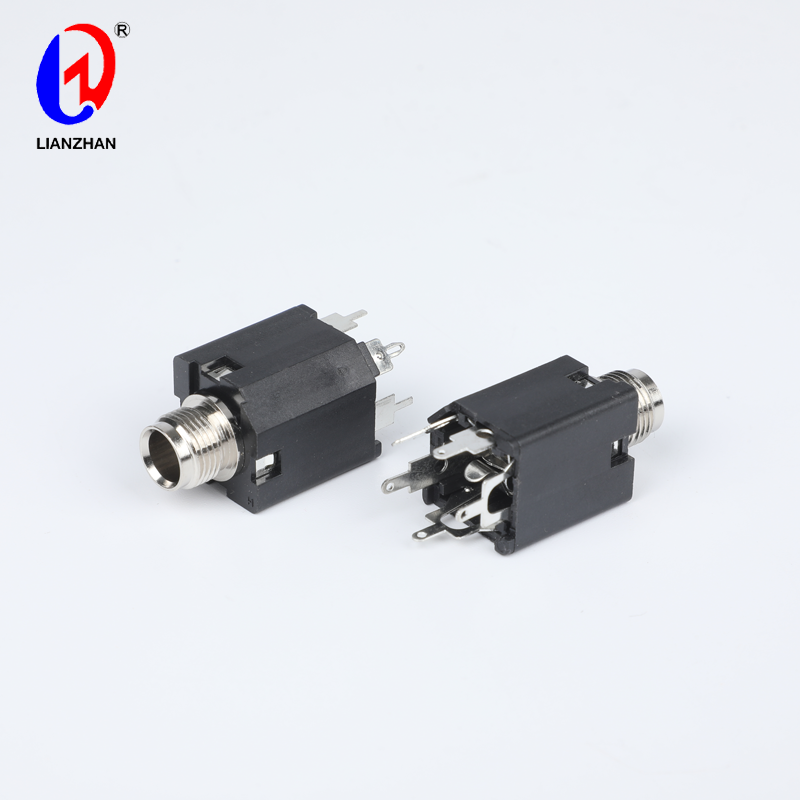

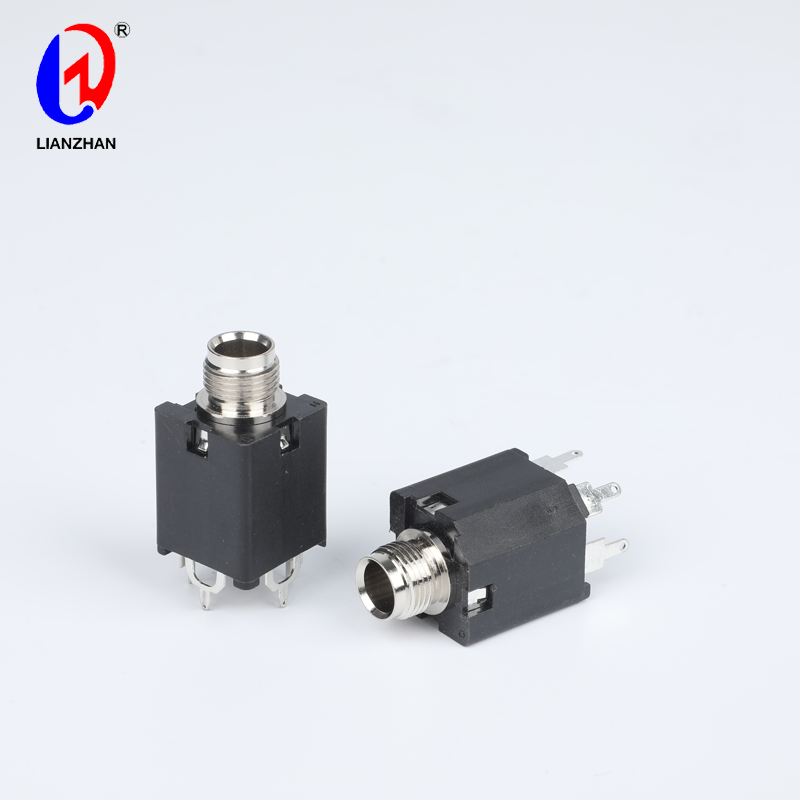

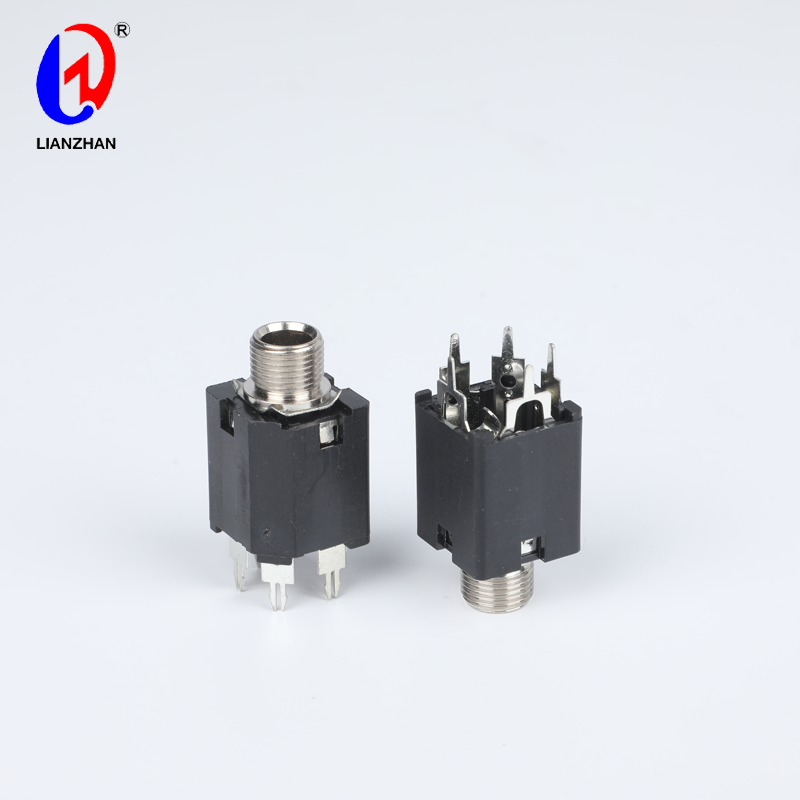

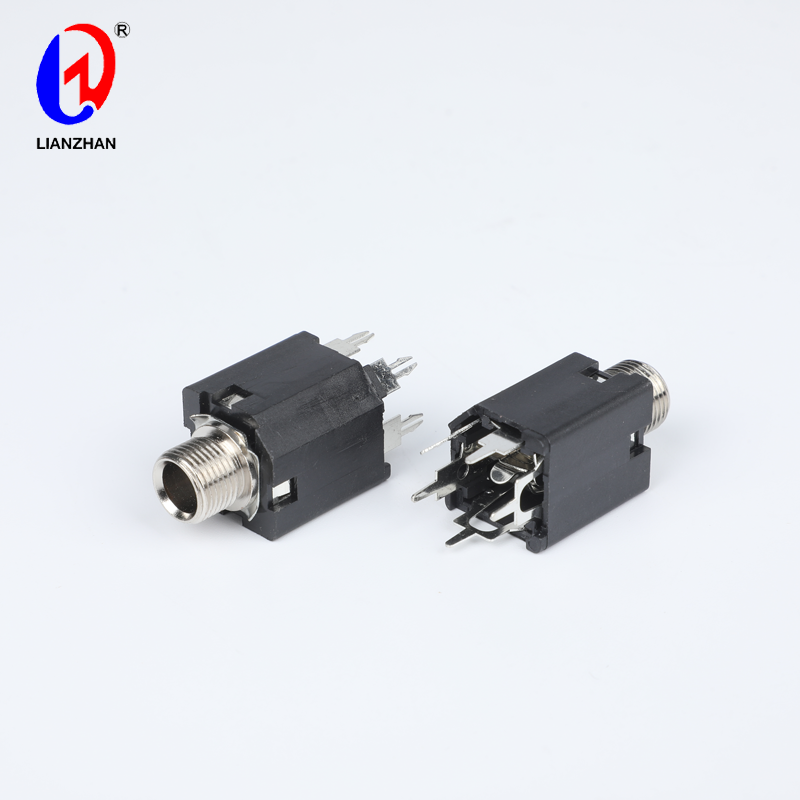

Audio Jack 5 Pin 6.35mm Socket Headphone Stereo Panel Mount Jack Connector

Short Description:

1/4″ Audio Headphone Socket Connector 5 Pin Audio Female Stereo Jack, it’s made of plastic and metal material, in silver tone and black color. Our 6.35mm PCB mounting socket will be an ideal item to replace the broken PCB socket. Application to Media Player, Audio Video Equipment, AV Equipment, Microphone, Headphone and so on.

Send email to us Whatsapp

Product Detail

Product Tags

Product Details

● Type: 5 Pin 6.35mm Female Stereo Jack Headphone Panel Mount Audio Jack Socket Connector
● Material: Made of high quality plastic and metal material, good conduction, stable performance.
● Connect: One end is wiring port for connecting the input power line or soft cable. And the other end is arranged in the insulating base for computer monitor normal operation.
● Application: Audio-Video Equipment, AV Equipment, PDA, Vehicle Audio, Media Player Player, Headphone etc.

Specification

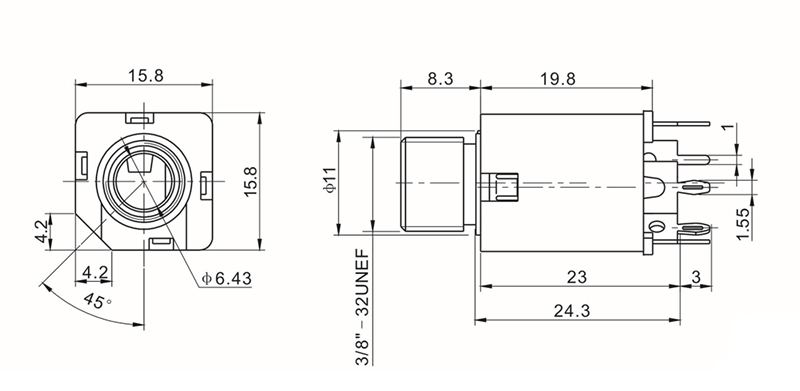

Audio-Jack-5-Pin-6.35mm-Socket-Headphone-Stereo-Panel-Mount-Jack-Connector

Product Name	5 Pin 6.35mm Female Stereo Jack Headphone Panel Mount Audio Jack Socket Connector
Model	CK6.35-630-5P
Pin	3 PIN
Contact Resistance	≤0.03 MΩ
Insulation Resistance	≥100 MΩ
Withstand Voltage	500V, AC/min
Terminal Strength	≥30 N
Rated Load	30V DC 1.0A
Temperature	-30 ~ +70 ℃
Life	5000 Time
