Product Details

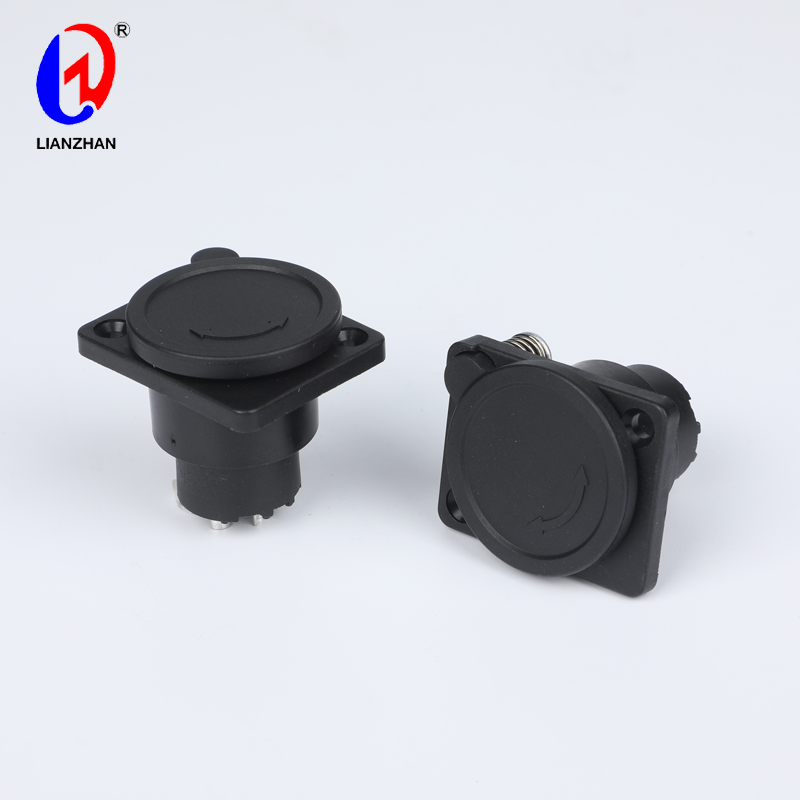

● Type: XLR 5 Pole Male Chassis Panel Mount Connector
● Accurate twist lock latching system and metal insert in locking area
● This adapter is primerily used with professional audio and video equipment, frequently used by musicians in a studio as well as during live performance
● Can be applied on microphone connections/audio electronics, amplifiers and cabling applications
● Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts
● Color: Black, Silver Tone
Specification
| Product Name |
XLR 5 Pole Male Chassis Panel Mount Connector |
| Model |
CT3-08HFE |
| Pin |
3 PIN |
| Contact Resistance |
≤0.2 MΩ |
| Insulation Resistance |
≥100 MΩ |
| Withstand Voltage |
1500V, AC/min |
| Terminal Strength |
≥30 N |
| Rated Load |
250V DC 1.0A |
| Temperature |
-30 ~ +80 ℃ |
| Life |
5000 Time |
-
