Product Details

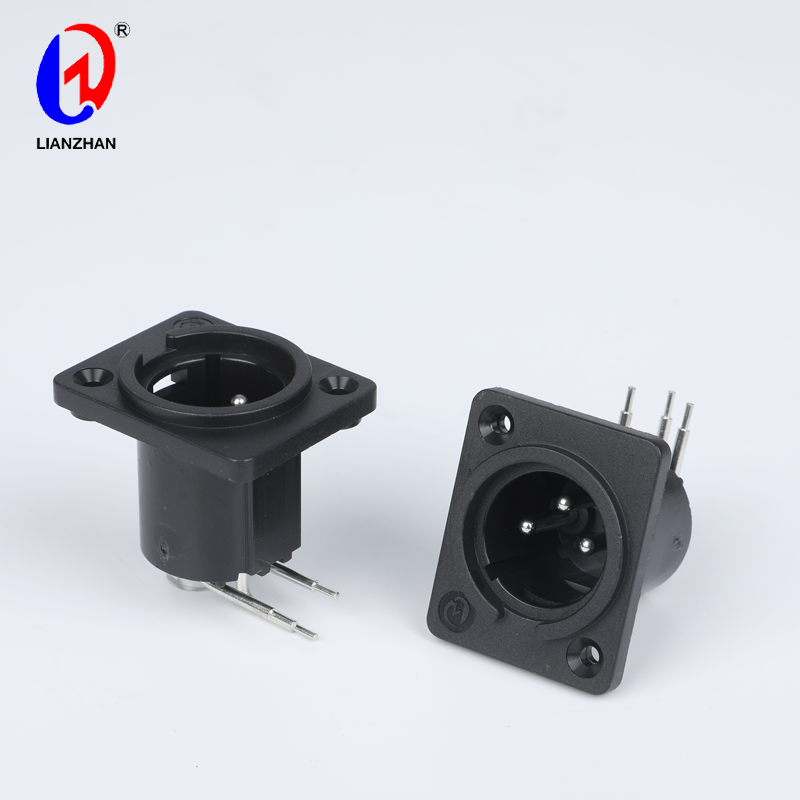

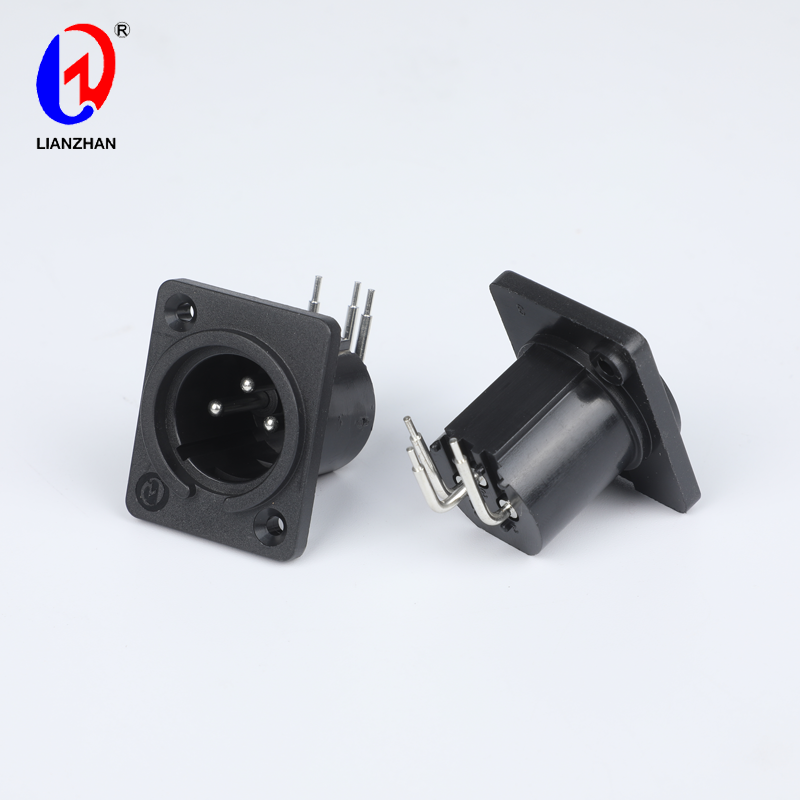

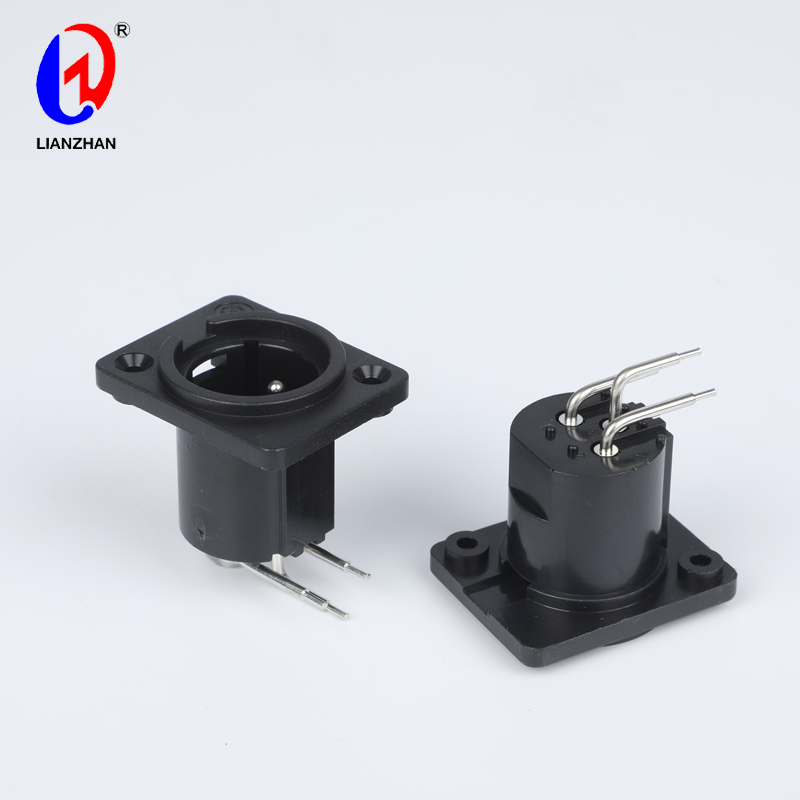

● Type: Angled Pin XLR Connector Male Panel Mount Chassis Socket
● Material: Made of high quality plastic and metal material, good conduction, stable performance.
● This adapter is primarily used with professional audio and video equipment, frequently used by musicians in a studio as well as during live performance
● Can be applied on microphone connections/audio electronics, amplifiers and cabling applications
● Another one of those adapters that every audio geek needs to have in their toolbox. XLR Adapters for Pro Audio use. Great for mixers, microphones, amplifiers, guitars, electric piano, electric drums etc.
● Color: Black
Specification
| Product Name |
Angled Pin XLR Connector Male Panel Mount Chassis Socket |
| Model |
CT3-06MA |
| Pin |
3 PIN |
| Contact Resistance |
≤0.2 MΩ |
| Insulation Resistance |
≥100 MΩ |
| Withstand Voltage |
1500V, AC/min |
| Terminal Strength |
≥30 N |
| Rated Load |
250V DC 1.0A |
| Temperature |
-30 ~ +80 ℃ |
| Life |
5000 Time |
-
