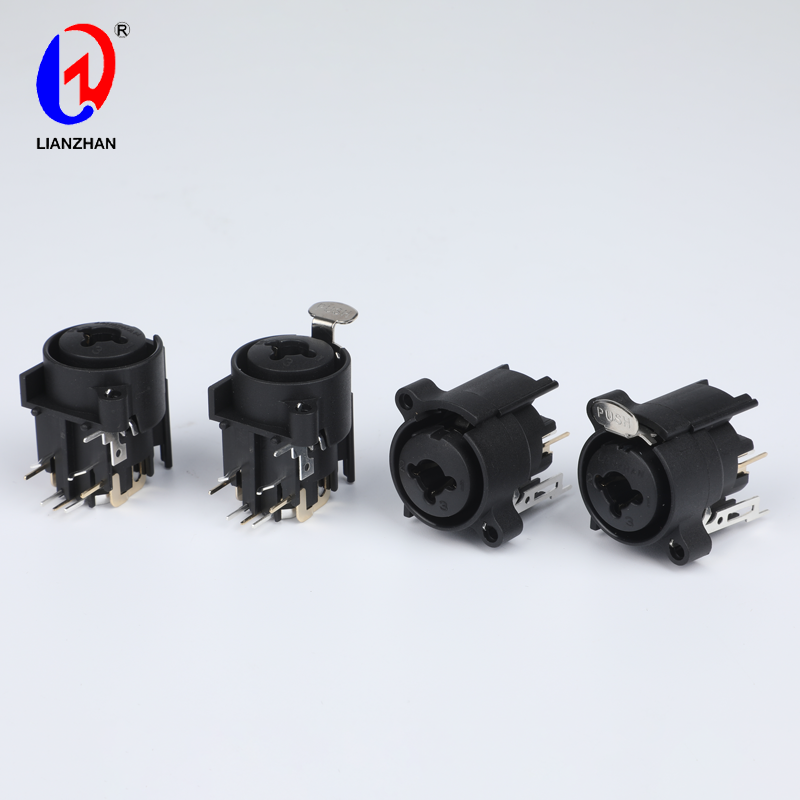

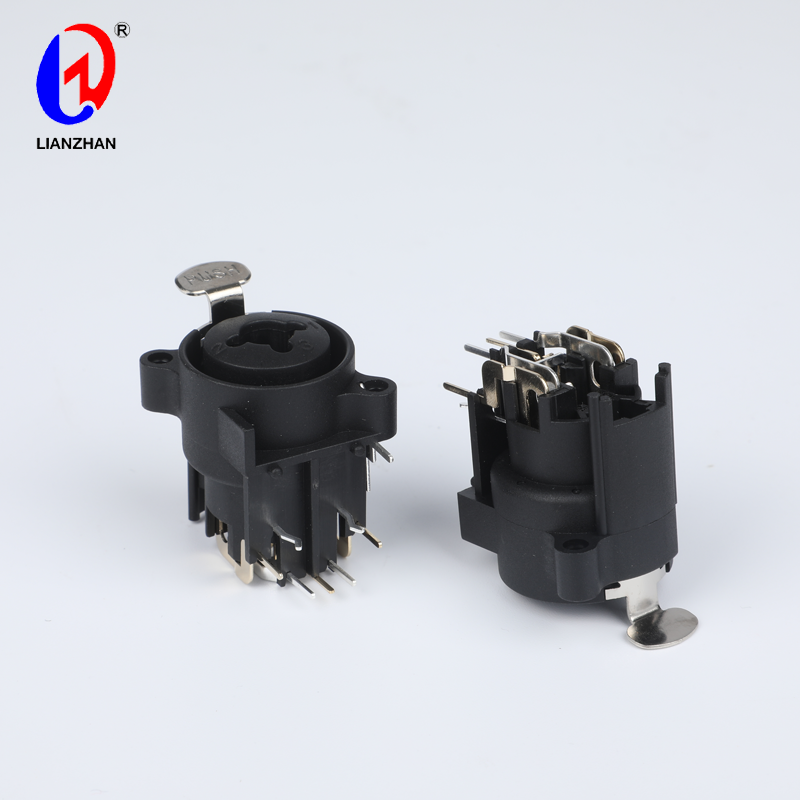

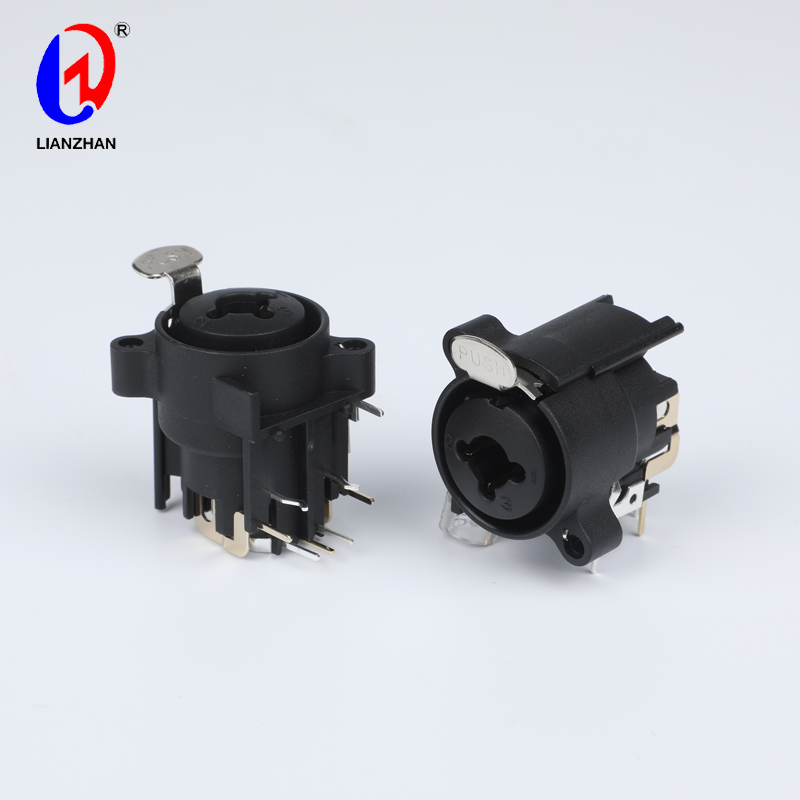

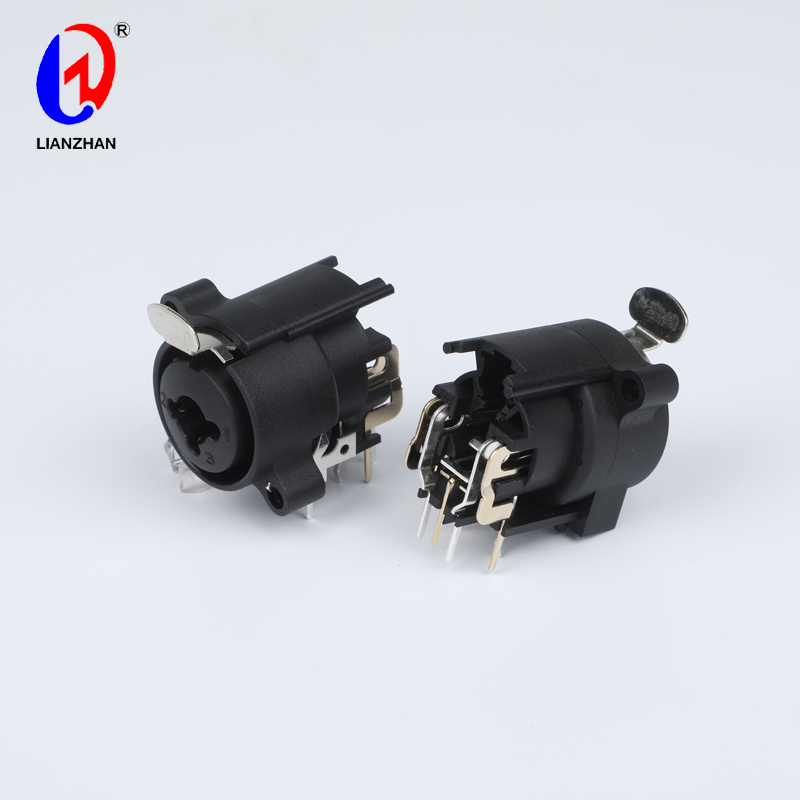

XLR Jack Hybrid Chassis Panel Mount Socket 3 Pole Female Receptacle With 1/4″ Stereo Jack

XLR Jack Hybrid Chassis Panel Mount Socket 3 Pole Female Receptacle With 1/4″ Stereo Jack

Short Description:

Push XLR Right Angle Pin Connector 3 Poles XLR Female Chassis Mount Socket with 1/4 Inch Stereo Jack. This innovative range of sockets allow for XLR 1/4″ Jack connection in a single XLR shell. They incorporate metal brackets with M3 threads at the front end and snap in locks to the rear, to provide a firm mechanical link between the board and the chassis. Jack plug retention is via a spring element which is completely separated from the contacts.


Whatsapp

Product Detail

Product Tags

Product Details

● Type: 3 Poles Push Lock XLR Female Socket With 6.35mm Stereo Jack
● Material: Made of high quality plastic and metal material
● Allow for Male XLR and 1/4″ Connection
● Dual Function Panel Connector
● This adapter is primarily used with professional audio and video equipment, frequently used by musicians in a studio as well as during live performance

Specification

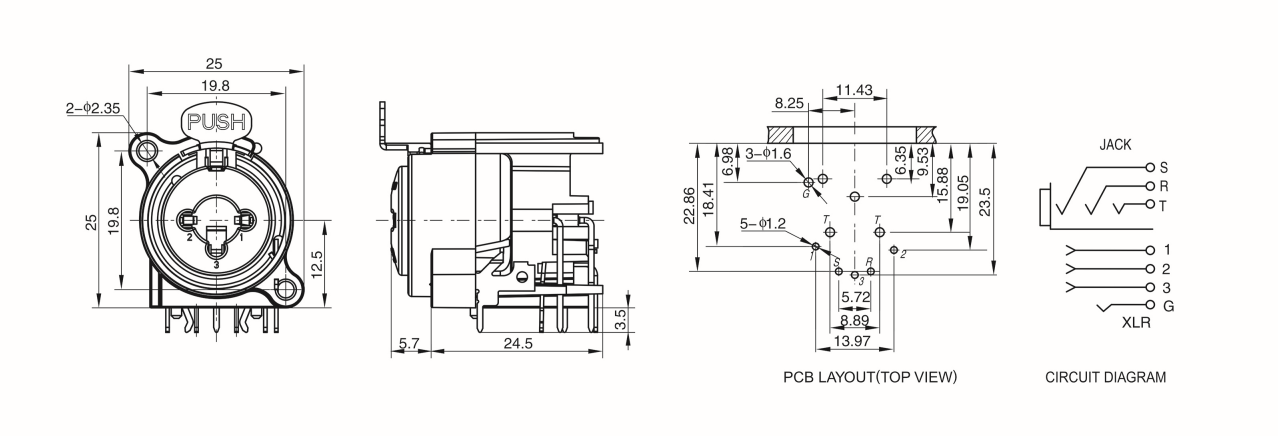

XLR Jack Hybrid Chassis Panel Mount Socket 3 Pole Female Receptacle With Stereo Jack

Product Name

3 Poles Push Lock XLR Female Socket With 6.35mm Stereo Jack
Model

CTCK-11WP
Pin

3 Pole
Contact Resistance

XLR＜10 MΩ ; Jack＜20 MΩ
Insulation Resistance

＞500 MΩ
Withstand Voltage

1600V, AC/min
Terminal Strength

≥30 N
Rated Load

50V AC 7.5A
Temperature

-20 ~ +65 ℃
Life

5000 Time
