Audio Combo XLR 6.35mm Jack Connector 3 Pole Female Chassis Socket With 1/4″ Stereo Jack

Audio Combo XLR 6.35mm Jack Connector 3 Pole Female Chassis Socket With 1/4″ Stereo Jack

Short Description:

Lianzhan XLR Combo 1/4″ Stereo Jack. Replace Neutrik XLR Jack Hybrid Chassis Panel Mount Socket Connector. Allow for Male XLR and 1/4″ Connection. Eliminates need for separate connector, fit standard D series hole pattern. Lianzhan XLR Jack Panel Connectors are used for Audio Video, Microphone, Speaker, Amplifier, Stage Sound Lighting and so on. Lianzhan XLR PCB Mount Connector with straight or right angle pins for either vertical (V) or horizontal (H) mounting. Our all products could be customized.


Whatsapp

Product Detail

Product Tags

Product Details

● Type: Neutrik XLR Combo Connector 3 Pole Female Panel Mount Socket
● Material: Made of high quality plastic and metal material
● Dual Function Panel Connector
● Applied to Audio-Video Equipment, Microphone, Sound Card, Video, Mixer, Power Amplifier, Speaker and Stage Sound Lighting etc
● Color: Black, Right Angle Pin

Specification

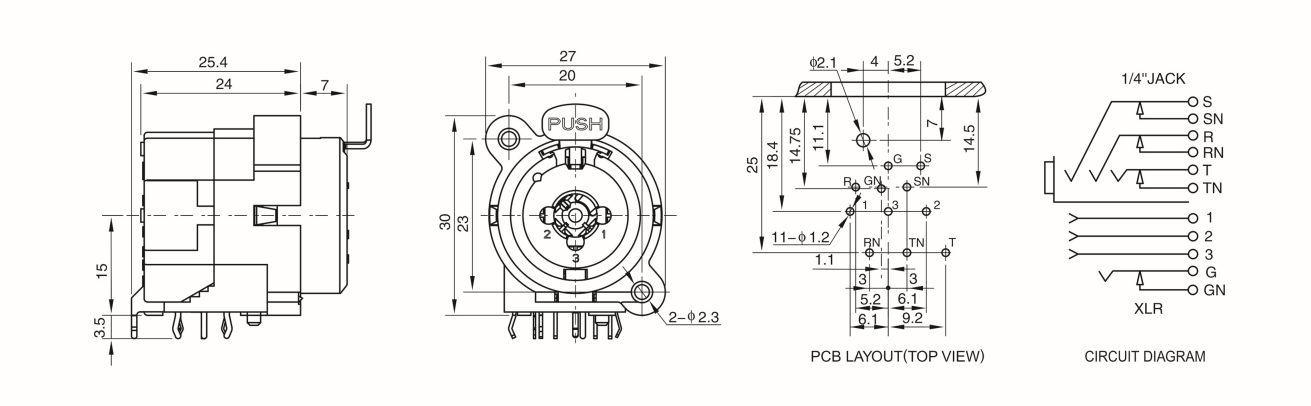

Audio Combo XLR 6.35mm Jack Connector 3 Pole Female Chassis Socket With 1-4 Stereo Jack

Product Name

Neutrik XLR Combo Connector 3 Pole Female Panel Mount Socket
Model

CTCK-12WP-11P
Pin

3 Pole
Contact Resistance

XLR＜10 MΩ ; Jack＜20 MΩ
Insulation Resistance

＞500 MΩ
Withstand Voltage

1600V, AC/min
Terminal Strength

≥30 N
Rated Load

50V AC 7.5A
Temperature

-20 ~ +65 ℃
Life

5000 Time

We insist on the principle of development of ‘High quality, Efficiency, Sincerity and Down-to-earth working approach’ to deliver you with great provider of processing for Professional Design China 3-Pin XLR Female Receptacle with 1/4″ Mono Jack Combo Socket Chassis, Please ship us your specifications and demands, or truly feel totally free to get hold of us with any questions or inquiries that you may have.

Professional Design China 3 Pole XLR Connector , XLR Socket, we have complete material production line, assembling line , quality control system, and the most importantly, we have many patents technology and experienced technical & production team, professional sales service team. With all those advantages, we are going to create”the reputable international brand of nylon monofilaments”, and spreading our products to every corner of the world. We are keep moving and try our best to serve our customers.
