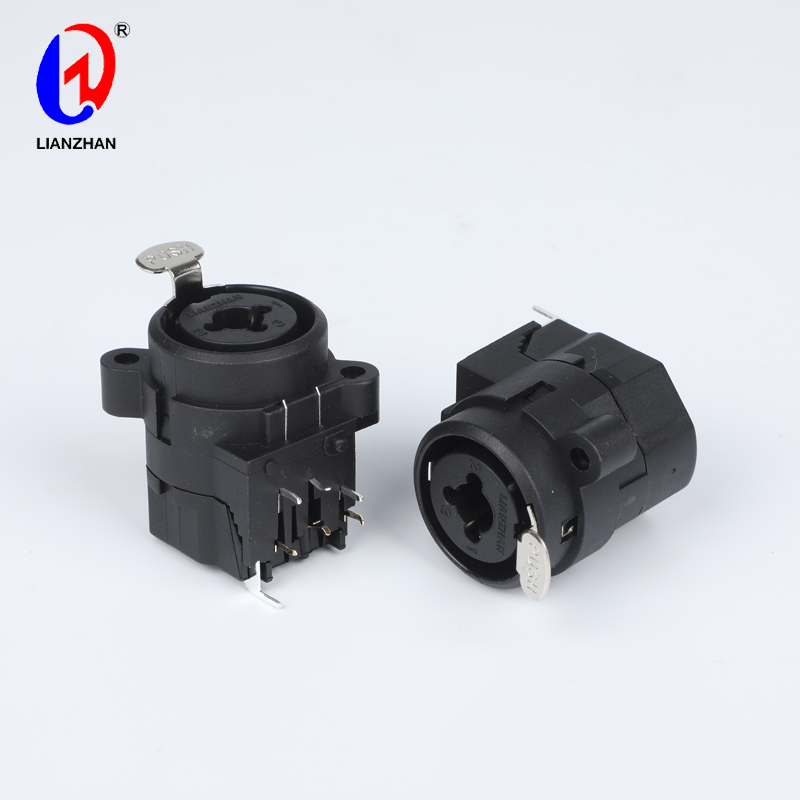

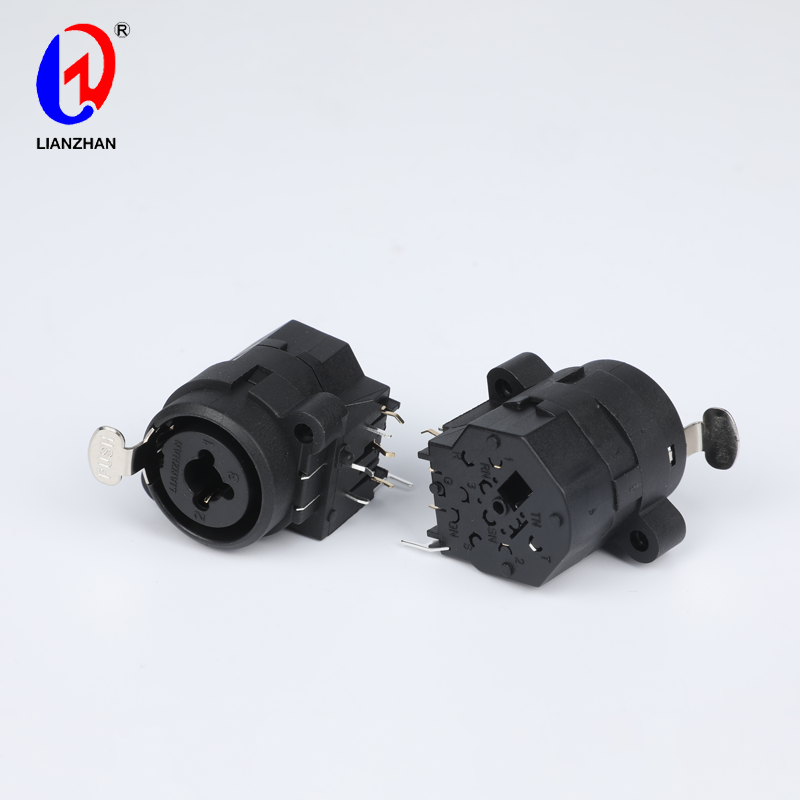

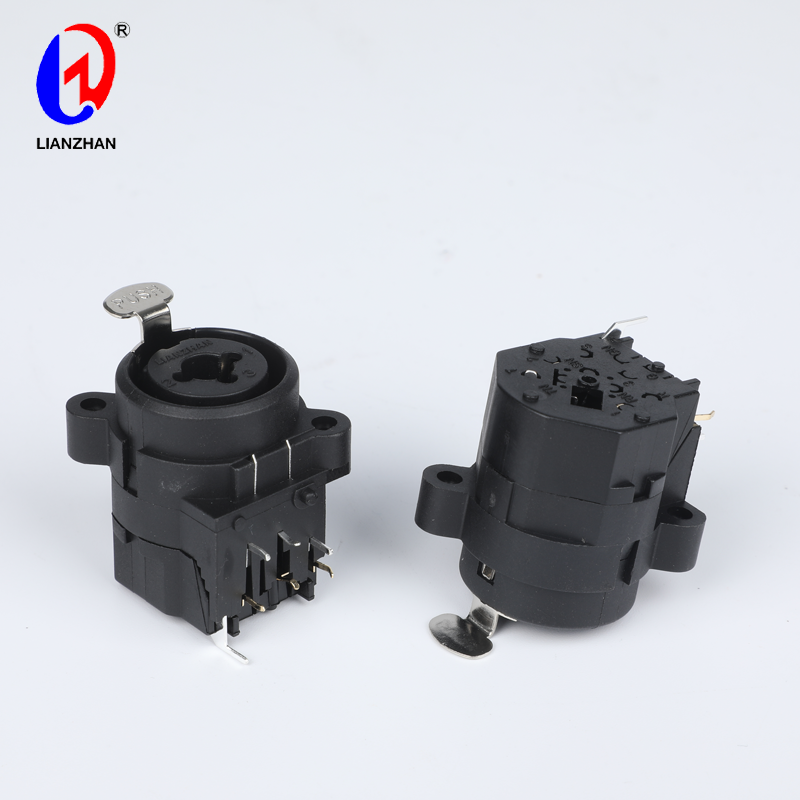

Neutrik XLR Jack Combo Stereo Connector 3 Pole Female Chassis Mount Socket With 1/4″ Jack

Neutrik XLR Jack Combo Stereo Connector 3 Pole Female Chassis Mount Socket With 1/4″ Jack

Short Description:

Female XLR Chassis Panel Mount Socket With 6.35mm Stereo Jack. This innovative range of sockets allow for XLR 1/4″ Jack connection in a single XLR shell. They incorporate metal brackets with M3 threads at the front end and snap in locks to the rear, to provide a firm mechanical link between the board and the chassis. Jack plug retention is via a spring element which is completely separated from the contacts. Lianzhan XLR PCB Mount Connector with straight or right angle pins for either vertical (V) or horizontal (H) mounting.


Whatsapp

Product Detail

Product Tags

Product Details

● Type: 3 Pole XLR Female Push Lock Connector With 1/4 Inch Stereo Jack
● Material: High quality plastic and metal material, good conduction, stable performance
● Dual Function Panel Connector
● Can be applied on microphone connections/audio electronics, amplifiers and cabling applications
● Color: Black, Angled Pin

Specification

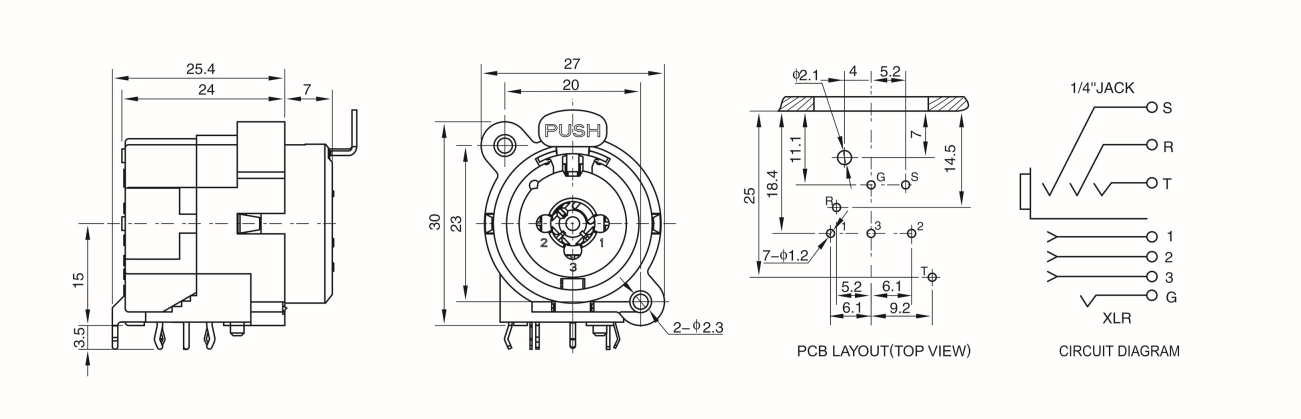

Neutrik XLR Jack Combo Stereo Connector 3 Pole Female Chassis Mount Socket With 1-4 Jack

Product Name

3 Pole XLR Female Push Lock Connector With 1/4 Inch Stereo Jack
Model

CTCK-12WP-7P
Pin

3 Pole
Contact Resistance

XLR＜10 MΩ ; Jack＜20 MΩ
Insulation Resistance

＞500 MΩ
Withstand Voltage

1600V, AC/min
Terminal Strength

≥30 N
Rated Load

50V AC 7.5A
Temperature

-20 ~ +65 ℃
Life

5000 Time
