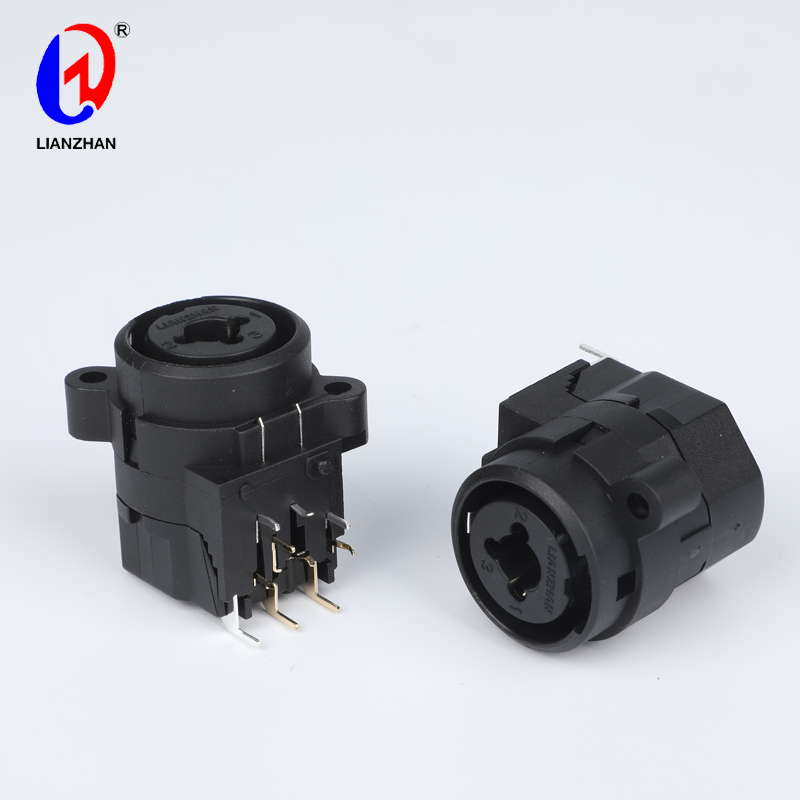

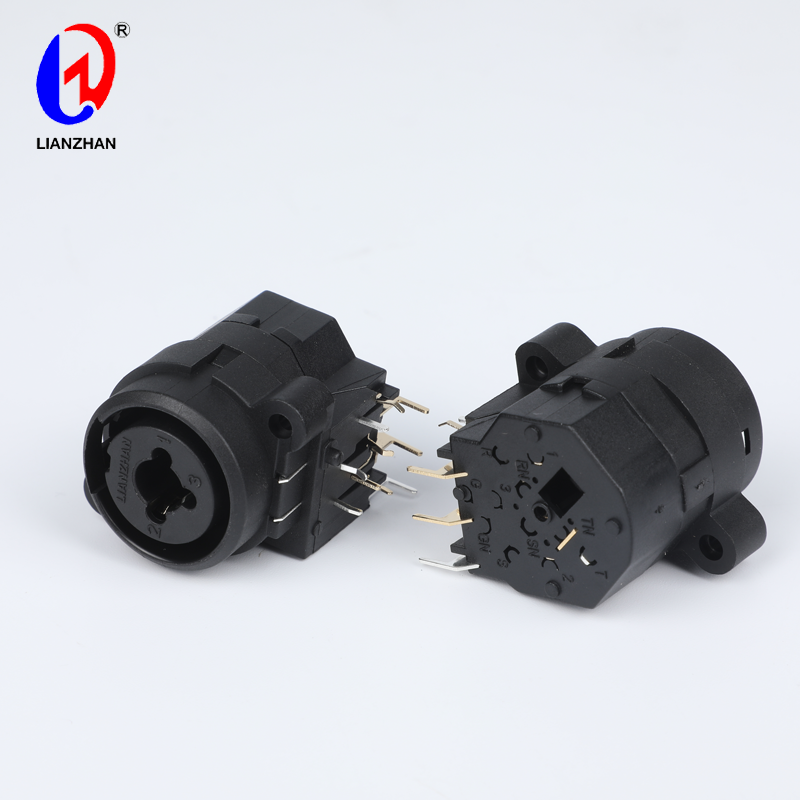

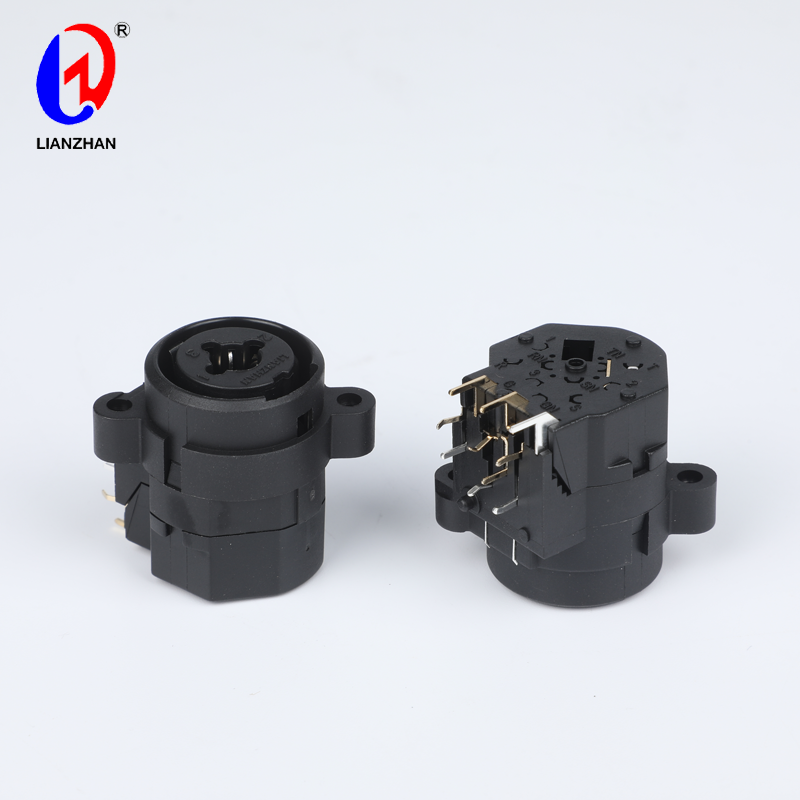

Audio Right Angle Pin Connector XLR Female Combo Connector With 1/4″ Stereo Jack

Audio Right Angle Pin Connector XLR Female Combo Connector With 1/4″ Stereo Jack

Short Description:

Audio XLR Combo Connector 3 Pole Female Socket With 6.35mm 1/4 Inch Stereo Jack. This innovative range of sockets allow for XLR 1/4″ Jack connection in a single XLR shell. They incorporate metal brackets with M3 threads at the front end and snap in locks to the rear, to provide a firm mechanical link between the board and the chassis. Jack plug retention is via a spring element which is completely separated from the contacts. Our all products could be customized.


Whatsapp

Product Detail

Product Tags

Product Details

● Type: 3 Pole Female XLR Jack Hybrid Chassis Panel Mount Socket
● Material: Made of high quality plastic and metal material, good conduction, stable performance
● Dual Function Panel Connector
● Allow for Male XLR and 1/4″ Connection
● Applied to Audio-Video Equipment, Microphone, Sound Card, Video, Mixer, Power Amplifier, Speaker and Stage Sound Lighting etc

Specification

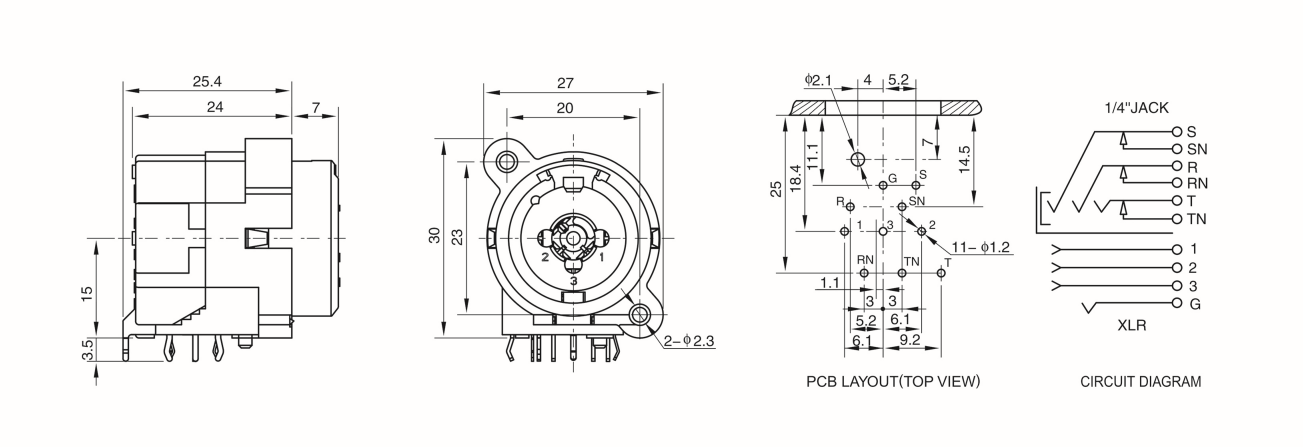

Audio Right Angle Pin Connector XLR Female Combo Connector With 1-4 Stereo Jack

Product Name

3 Pole Female XLR Jack Hybrid Chassis Panel Mount Socket
Model

CTCK-12W-10P
Pin

3 Pole
Contact Resistance

XLR＜10 MΩ ; Jack＜20 MΩ
Insulation Resistance

＞500 MΩ
Withstand Voltage

1600V, AC/min
Terminal Strength

≥30 N
Rated Load

50V AC 7.5A
Temperature

-20 ~ +65 ℃
Life

5000 Time
